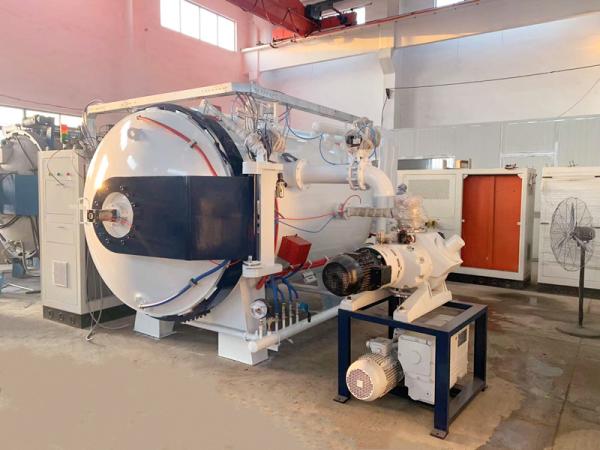

High Pressure Gas Quenching Furnace Vacuum Remote Control Electric Graphite

Name : Vacuum Gas Quenching Furnace

Air Cooling Pressure : 2/4/6/10/15/20bar

Chamber Size : 400*300*300mm (Custom Made)

Core Components : Plc, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump

Dimension(L*W*H) : 300*300*500-1000*1000*2000(Customized)

Heater : Mosi2 Heating,Mo Belt, Tungsten, Graphite, Simo, Sic

Loading Capacity : 50-1500kg

Power (Kw) : 36-500kw

Pressure Increasing Rate : 0.65/0.67/0.68pa/H

Structure : Horizontal, Vertical, Batch, Continuous

Ultimate Vacuum : 3.0*10-4 Pa

Voltage : Optional Customized(220v/380v/660v)

Working Temperature : 0-1650 Degrees

Weight : 2t-35t

Amosphere Protect : Gas Protection

Furnace Structure : Double Shell With Water Cooling

Furnace Temperature Uniformity : ±5 .C

Usage : Lab Sintering/Brazing/Quenching/Heating Treatment /Bright Annealing For Steels

Key Selling Points : Easy To Operate/High Productivity/Multifunctional/Energy Saving

Melting Material : Metal Workpiece

Place of Origin : Changzhou, China

Brand Name : Cabory

MOQ : 1 set

Price : Negotiation

Packaging Details : Plastic and Foam Inside Wooden Box Outside Strong Packing to Ensure Shipment Safety

Delivery Time : 60 Days

Payment Terms : L/C, T/T

Supply Ability : 20 Set/Sets per Month

Contact Now

Remote control electric graphite vacuum high-pressure gas quenching furnace

Usage:The rapid solution of Aluminum wheel,Aluminum cast and other Aluminum alloy parts.

Features:

1.The shell is made by high-quality steel of 3mm thick.And the lining is a kind of Composite structure with insulating refractory brick and Aluminosilicate Fiber board.

2.The door is drivered by cylinder to make sure the seal.

3.Temperature Control system including Intelligent Digital Display Temperature Controller and Temperature Record.

4.After heating, the parts transfer to cistern less than 10seconds.

Application

Quenching of high speed steel, tool and die steel, stainless steel.

Solid solution treatment of stainless steel and titanium alloys.

Magnetic materials Vacuum heat treatment of magnetic materials.

High temperature brazing and vacuum sintering.

Performance features

Convection heating, to achieve rapid and uniform heating of low-temperature strands.

The heating chamber structure in the furnace provides more uniform heating, less power loss and energy saving.

Using a new type of carbon felt composite material, it is resistant to high temperature and high pressure airflow erosion, and the heat shield has a longer service life and is easier to maintain.

High-speed and high-pressure fans and high-efficiency copper-copper heat exchangers achieve rapid cooling.

Alternate cooling method achieves uniform cooling and ensures minimal deformation of the workpiece.

The cooling pressure and wind speed of the locomotive are adjustable to achieve graded cooling.

The vertical furnace adopts screw drive, which is flexible, safe and reliable.

Optional graphite or all-metal heating chamber.

Optional fully intelligent industrial computer control and a manual operating system are available, which are easy to learn, understand and operate.

Specification

Name Vacuum Gas Quenching Furnace
Air Cooling Pressure 2/4/6/10/15/20bar
Chamber Size 400*300*300mm (Custom Made)
Core Components Plc, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Dimension(L*W*H) 300*300*500-1000*1000*2000(Customized)
Heater Mosi2 Heating,Mo Belt, Tungsten, Graphite, Simo, Sic
Loading Capacity 50-1500kg
Power (Kw) 36-500kw
Pressure Increasing Rate 0.65/0.67/0.68pa/H
Structure Horizontal, Vertical, Batch, Continuous
Ultimate Vacuum 3.0*10-4 Pa
Voltage Optional Customized(220v/380v/660v)
Working Temperature 0-1650 Degrees
Weight 2t-35t
Amosphere Protect Gas Protection
Furnace Structure Double Shell With Water Cooling
Furnace Temperature Uniformity ±5 .C
Usage Lab Sintering/Brazing/Quenching/Heating Treatment /Bright Annealing For Steels
Key Selling Points Easy To Operate/High Productivity/Multifunctional/Energy Saving
Melting Material Metal Workpiece

Valid zone
Maximum temperature (℃)
Heating power (kw)
Ultimate vacuum (Pa)
Gas cooling pressure (bar)
450x300x300
1320
40
5x10-3or4x10-1
10
600x400x400
1320
80
5x10-3or4x10-1
10
700x500x500
1320
120
5x10-3or4x10-1
10
900x600x600
1320
150
5x10-3or4x10-1
10
1500x800x800
1320
300
5x10-3or4x10-1
10
